Combine settings

Ground speed is one of the most important factors that a combine operator can control to improve harvest efficiency. By matching combine ground speed to crop throughput and harvest conditions, the operator can improve harvest efficiency. Excessive ground speed results in greater losses at almost all stages of the harvesting operation. Ground speed that is too slow may fail to keep the combine operating at full capacity, decreasing the threshing efficiency and increasing the specific fuel consumption (gallons/bushel).

Header loss

Header loss occurs when kernels do not make it into the machine. Both biological and mechanical factors contribute to header loss. Corn that has lodged or is too dry may shatter, causing whole ears to be lost. Deck plates that are set too widely may cause excessive butt shelling of the ears. Adjusting both the header speed and relative ground speed can reduce header loss; slower may be better.

To measure header loss, harvest a portion of the field and then place a marker toward the rear of the combine and in front of the tailings discharge. Back the machine up so that the front of the header is even with the marker. Grain on the ground in the area between the header and the unharvested portion of the field is due to header loss. To determine the loss per acre, count the number of kernels or ears on the ground between the front of the combine and the unharvested corn and estimate the yield loss.

Adjustments to minimize header loss

  1. Adjust the gathering snouts so that the center snout is just touching the ground when the gathering chains are 2 inches above the ground. Working out from the center, each successive snout should be about 1 inch lower than the adjacent snout. Drive with the center snout just touching the ground. This will ensure that all snouts float at ground level when combining over rough ground.
  2. Gathering chains should extend at least ¼ inch beyond the snapping plate when measured at the front of the plate. Control chain speed so that stalks are guided into the rolls without uprooting.
  3. Snapping rolls should be set according to stalk thickness with speed correlated closely to ground speed so that the ear is snapped in the upper third of the roll. This helps reduce ear loss.
  4. Deck plates should be set as wide as possible without losing ears or shelling corn off the ear. This reduces the amount of trash taken into the machine. The spacing between the plates should be 1/8 to 3/16 inch tighter at the front of the plates than at the rear. In highly variable crop conditions, paying close attention to deck plate spacing has one of the largest potentials for payback. Newer headers with automatic or hydraulically actuated deck plates have the potential to significantly reduce header losses.
  5. Trash knives should usually be set as close to the rolls as possible to prevent wrapping.

Threshing loss and kernel damage

As with most other crops, cylinder or rotor adjustment has a great effect on corn quality. As much as 80% of corn kernel damage occurs during the shelling process, so careful management at this point will produce dividends throughout storage and drying. Moisture content has a large effect on the amount of damage, with fines increasing rapidly at high moisture. If possible, delay harvest delayed until moisture is between 20-25%.

Concave clearance and cylinder or rotor speed require careful adjustment, and although a great variation in hybrids exists, a few rules of thumb have been developed. Over-shelling the grain (by having the cylinder or rotor speed too high, or the clearance too tight) not only produces excess fines but also consumes excessive power and fuel. A good way to adjust the cylinder or rotor is to begin with the clearance and speed recommended by the manufacturer (or in the middle of the suggested range), then make small changes after checking the discharge of the machine.

Adjustments to minimize threshing loss and damage

  1. Concave clearance should be set so that cobs fracture into halves or pie-shaped segments. If the cobs are broken into smaller halves or quartered pieces, higher cylinder or rotor speeds will be necessary to remove the grain, which in turn can contribute to grain damage, loss, and decreased sample quality.
  2. Reduce cylinder or rotor speed to the point that an occasional kernel is left on the cob. Several studies have shown that the best compromise between unshelled grain and excessive kernel damage occurs when about 0.2% of the kernels remain on the cob.

Keep in mind that the most significant contributing factor to grain damage is cylinder or rotor speed. In addition to grain damage, excessive cylinder or rotor speed can lead to increased levels of foreign material in the grain sample.

Sieve and chaffer settings

Machinery settings can affect grain losses at the sieve and chaffer. Grain losses may be reduced by adjusting fan speed. If there is too much trash, the kernels stay in the trash through the straw walkers in a conventional combine or over the cleaning shoe in a rotary design. The kernels are then thrown out of the machine in the tailings. This can result in a windrow effect when the corn kernels germinate (Figure 1).

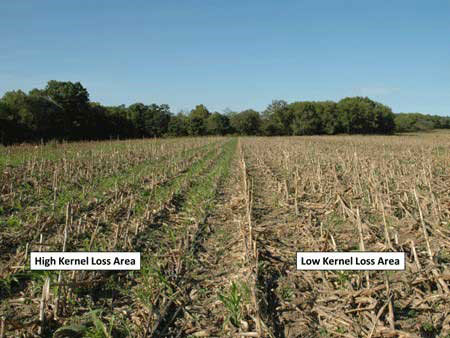

Figure 1. Windrowing effect from grain loss directly behind the combine. Photo by Gretchen Sassenrath, K-State Research and Extension.

Figure 1. Windrowing effect from grain loss directly behind the combine. Photo by Gretchen Sassenrath, K-State Research and Extension.

Careful adjustment of the combine can improve this. If the air speed is too high, too many kernels are lost. Conversely, if air speed is too low, unnecessary foreign material is retained in the grain resulting in quality dockage at the point of delivery. Adjust chaffer and sieve to minimize grain losses in the tailings. Yield losses from cleaning operations can be measured by counting kernels behind the combine. Especially look for windrowing effects if an adequate spreader is not used.

Now is the time to prepare for harvest by getting equipment in optimal operating conditions. In addition to the combine losses described here, additional losses can occur during transfer events. While this may look substantial, it is usually not very high across the entire field.

A final consideration is to examine the efficiency of all crop harvesting operations. Because we have a long period of warm temperatures and the possibility of adequate fall rain, we could see the corn harvest losses as volunteer corn. Similar losses can occur during wheat and soybean harvests. However, these losses are often not as apparent as the losses during corn harvest. Improving crop harvest efficiency means more grain in the bin and less on the ground.
